OKW expands Unitec enclosure range
An OKW Enclosures product story
Edited by the Electronicstalk editorial team Jul 2, 2010

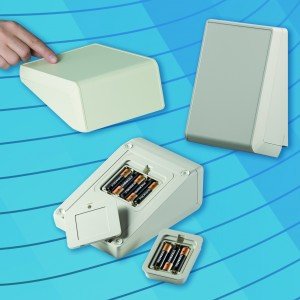

OKW has extended the Unitec range of sloping-front enclosures with the size S series, which is available in 12 different models with dual operating faces for face-to-face applications.
The two inclined operating panels are mounted at right angles to each other, which allows simultaneous input of data on one side and readout on the other.
OKW has extended the Unitec range of sloping-front enclosures with the new size S series, which is available in 12 different models
The Unitec enclosures are moulded in off-white ABS (UL 94 HB) and consist of a top part, rear-facing front part and base panel.
The case parts interlock and are secured by two self-tapping screws.
The size S models have external dimensions of 125mm x 177mm x 69/22mm, offering a more compact solution to the existing size M models, which measure 148mm x 200mm x 80/25mm.
Both sizes can be specified with a battery compartment for 3V or five 1.5V AA battery cells.
The battery compartment has a clip-on lid that can be screw fixed for added security.
The Unitec cases are available with optional recess depths on the operating faces of 0.6mm for graphic labels or 1.4mm for membrane keypads.
These enclosures can be used for desktop or wall-mounted applications.
A wall suspension element is available as an accessory, which allows the case to be mounted in different orientations.
OKW can supply the Unitec enclosure with additional holes for pushbuttons, connectors and displays, plus silk-screen printed legends and logos, as well as EMC shielding.
